Brace Band for Horizontal Member Attachment to Post

Chain link fence brace band with 2 in. diameter.

BB-01

Brace band.

Brace bands of chain link fence are often used with rail ends to attach horizontal rails to the terminal posts. The horizontal rails include top rail, bottom rail and middle rail. Tension wire and sometimes barbed wire are often attached by wrapping themselves to the carriage bolt (see below). Available in galvanized or vinyl-coated finish.

Product description:

  • Item: brace band.
  • Material: pressed steel.
  • Minimum thickness: 12 gauge.
  • Minimum width: 3/4 in.
  • Size: 1-3/8, 1-5/8, 2, 2-1/2, 3, 4 & 6 in.
  • Finish: hot-dip galvanized or PVC-coated.
  • Color: match the color coating of the fabric.
Brace band attach the bottom tension wire to the post.

BB-02

Tension wire wrapped to the carriage bolt of brace band.

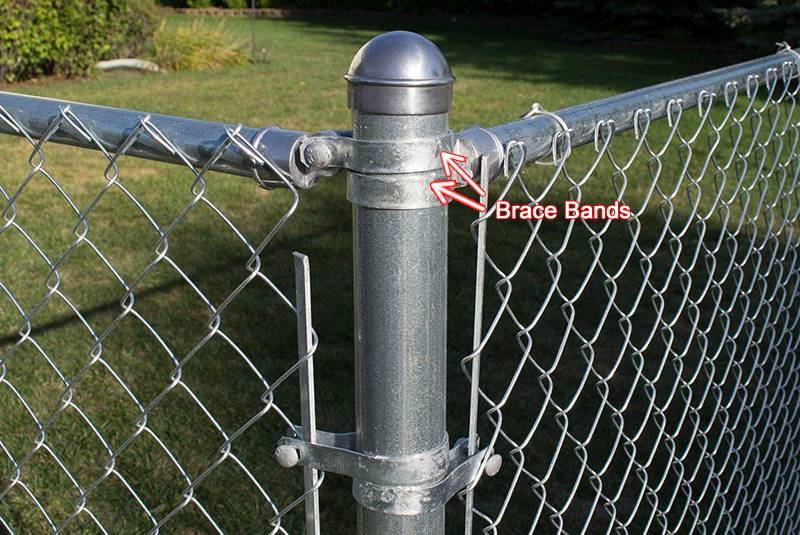

Galvanized brace band of corner post securing top rails.

BB-03

Brace bands on a corner post.
