Adjustable J-bolt Male Hinge for Chain Link Gate

Chain link J-bolt male gate hinge is designed for mounting a chain link gate on a wooden post, steel post and aluminum posts. Drill a hole through the post and bolt on hinges with two nuts. The nuts can adjust the spacing between the gate frame to the post mounted on. This j-bolt threaded male hinge is always used with chain link gate female hinge.

Galvanized J-bolt gate hinge for wood post.

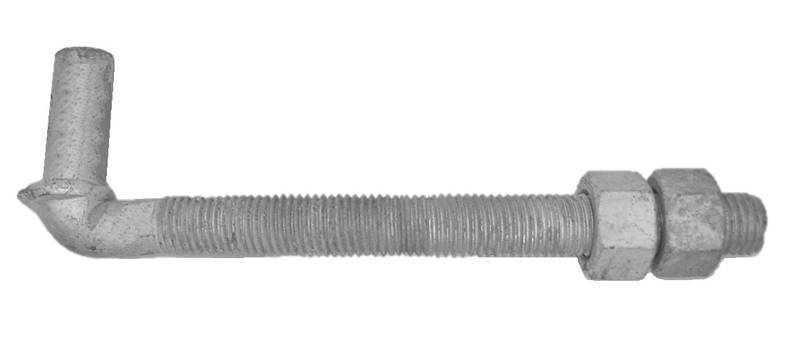

J-bolt male hinge.

Product description:

  • Item: J-bolt gate hinge.
  • Material: pressed steel.
  • Pin diameter: 5/8".
  • Length: 4-1/2", 10" and 12".
  • Finish: zinc-coating or PVC-coated.
  • Color: silver, black, green or custom colors.
