Chain Link Fence Gate Corners Add Gate Strength

Corner fitted chain link fence gate are widely found in residential, commercial and industrial gates. To prevent the gate from sagging, truss cable or truss rod is often employed. Hence, all gate corners have holes in the inside of the corner to connect the wire or cable. There are three types of gate corners to match with the gate.

Type A: Aluminum Gate Corner

Aluminum gate corner is just for residential gate with 1-3/8" pipe frame. Insert the corner snugly to the gate frame and simply install self-tap screw to the frame. Order four corners per gate.

GC-01

Aluminum gate corner.

GC-02

Black vinyl-coating aluminum gate corner.

Type B: Residential Steel Gate Corner

14 gauge galvanized steel gate corners are frequently used in residential gates. The corners will not crack even under stress or abuse. They are made for 1-3/8" pipe. Self-tap screws to secure gate corner to the frame. Order four corners per gate.

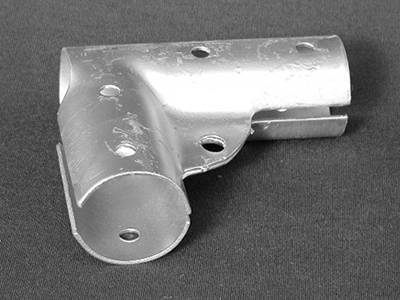

GC-03

Residential chain link gate corner.

Type C: Commercial Steel Gate Corner

The heavy-duty gate corners are manufactured by 12 gauge pressed steel, which are hard to crack under impact. Available for 1-5/8" and 2" pipe. Self-tap screws to secure gate corner to the frame. Order four corners per gate.

GC-04

Commercial chain link gate corner.

GC-05

Black vinyl-coated gate corner.

GC-06

Gate corner for single walking gate.
